Sensorbox

Sensorbox is a self-hosted system for building OpenWrt-based Orb sensor images. You run a small web app locally, pick a supported device, provide your Wi-Fi credentials, and customize your install. The result is an SD-card (or eMMC) image that boots into a dedicated, always-on Orb sensor — ready to continuously monitor your network experience.

What you'll need

• A supported single-board computer or router (see the NanoPi Zero2 hardware build for a worked example).
• A computer to run Sensorbox and flash the resulting image. The setup below is written for macOS and Linux.
• Podman and podman-compose. Sensorbox runs on Podman because ASU's build worker spawns one container per build via the Podman API — Docker is not a tested drop-in substitute.
• An SD card (or eMMC) and a way to flash it: Raspberry Pi Imager, balenaEtcher, or dd.

Step 1: Clone the repository

Sensorbox uses git submodules, so clone recursively:

git clone --recurse-submodules [email protected]:orbforge/sensorbox.git

If you already cloned without --recurse-submodules:

git submodule update --init

Step 2: Install Podman

macOS

1. Install Podman and the compose wrapper:

   brew install podman podman-compose

   An optional GUI is available with brew install --cask podman-desktop.

2. Initialize and start the Podman VM. The resource bumps matter — ASU's ImageBuilder runs will run out of memory or disk on the defaults:

   podman machine init --cpus 4 --memory 8192 --disk-size 100
   podman machine start
   podman info   # sanity check

   Note

   --disk-size 100 is a VM ceiling, not preallocated storage. ASU upstream recommends 50 GB minimum, and caches grow over time.
   :::

3. After reboots or Podman upgrades, restart the VM:

   podman machine start


Linux

Install podman and podman-compose from your distribution, then enable the user socket so the ASU worker can reach it:

systemctl --user enable --now podman.socket

No VM is needed — Podman runs natively.

Windows

Not yet validated. Podman Desktop supports Windows via WSL2; expect a flow similar to macOS.

Step 3: Configure

Copy the example environment file:

cp .env.example .env

Edit two values in .env:

• PUBLIC_PATH — set to the absolute path of the public directory inside your clone, for example /Users/<you>/<path-to>/sensorbox/public on macOS or /home/<you>/<path-to>/sensorbox/public on Linux. Then create the subdirectories it expects:

  mkdir -p "$PUBLIC_PATH"/{store,logs}


• CONTAINER_SOCKET_PATH — run the command below and paste the result (dropping the unix:// prefix):

  podman info --format '{{.Host.RemoteSocket.Path}}'


Leave everything else at its default.

Step 4: Run the stack

From the repository root:

podman-compose up -d

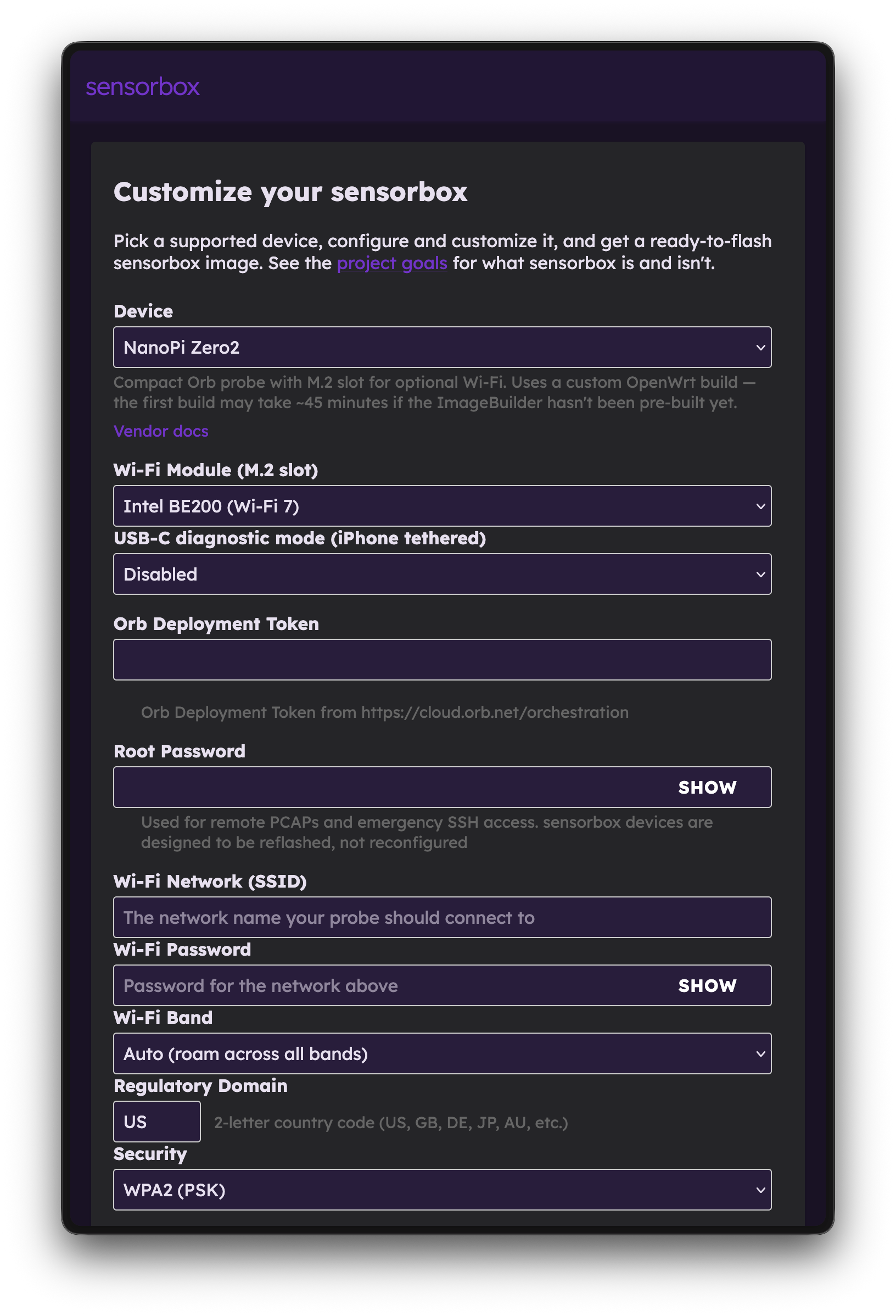

Open http://localhost:8080/ in your browser, select your device, and configure your install. The first run pulls the ASU image and builds the openwrt-builder image, which takes a few minutes. Subsequent runs are fast.
